Charging and Replacing Your Wireless Video Doorbell Battery

Easily charge and replace the battery in your wireless video doorbell by following the steps below:

Charging Requirements

1. A 5V/1.5A USB wall charger

2. The supplied charging cable

Charging Steps

Please note: A fully depleted battery will take approximately 7 hours to charge.

1. Remove the video doorbell from the mount.

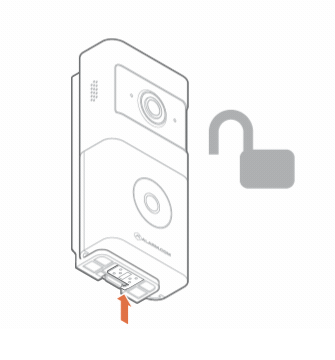

2. Unlatch the bottom of the mount.

Instructional drawing showing where to unlock your bottom mount to remove it and access the wireless video doorbell's battery.

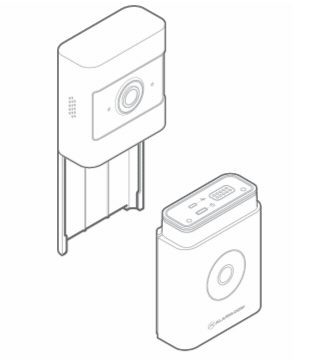

3. Separate the battery pack from the video doorbell body.

Instructional drawing showing how to remove the battery pack from the body of the wireless video doorbell.

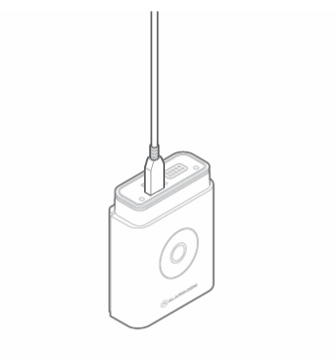

4. Plug the supplied micro USB cable into the battery pack.

Instructional drawing showing where to plug in a wireless USB cord to a wireless video doorbell.

5. Plug the USB end of the cable into a USB wall charger and insert the charger into an outlet.

6. The charging LED, located on the top of the battery pack, will be solid orange while the device is charging. The charging LED will turn solid green when charging has completed.

7. If you are replacing the battery, simply make sure it is fully charged and insert the new battery.
