Guardian IQ4 Panel

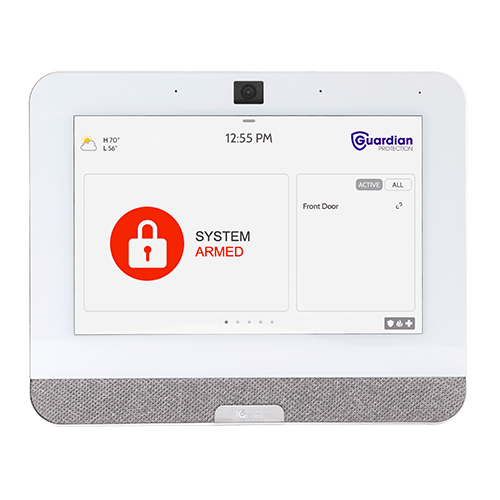

The Guardian IQ4 panel combines advanced security with intuitive smart home control. Featuring PowerG technology for secure encryption and reliable battery life, it offers Bluetooth disarming, glass break detection, and real-time video feeds on its 7″ LCD touchscreen. With crash-and-smash alerts and easy control of cameras, locks, lights, and the thermostat, this sleek security panel provides peace of mind and convenient management of home security and automation.
Features:
- Control Your Home
View cameras, unlock doors, adjust lights, and manage the thermostat. - PowerG Technology
Provides more secure encryption, longer range and reliability, and better battery life. - Bluetooth Disarming
Disarms your system for you — no hands needed! - Glass Break Detection
Can detect the sound of breaking glass within range. - 7” LCD Touchscreen
Simple swipe and tap navigation feels as familiar as a tablet. - Crash and Smash
Alerts our monitoring center if the security IQ4 panel is tampered with during an alarm.
Each Guardian System Includes:
Free Professional Installation
24/7 Professional Monitoring
Smart Security Panel
Mobile App
View Live Camera Feeds
The IQ security panel enhances your surveillance experience by displaying live video feeds directly on its high-definition screen. This convenient feature allows you to monitor your property in real-time, ensuring that you can keep an eye on what matters most.
Control Your Home

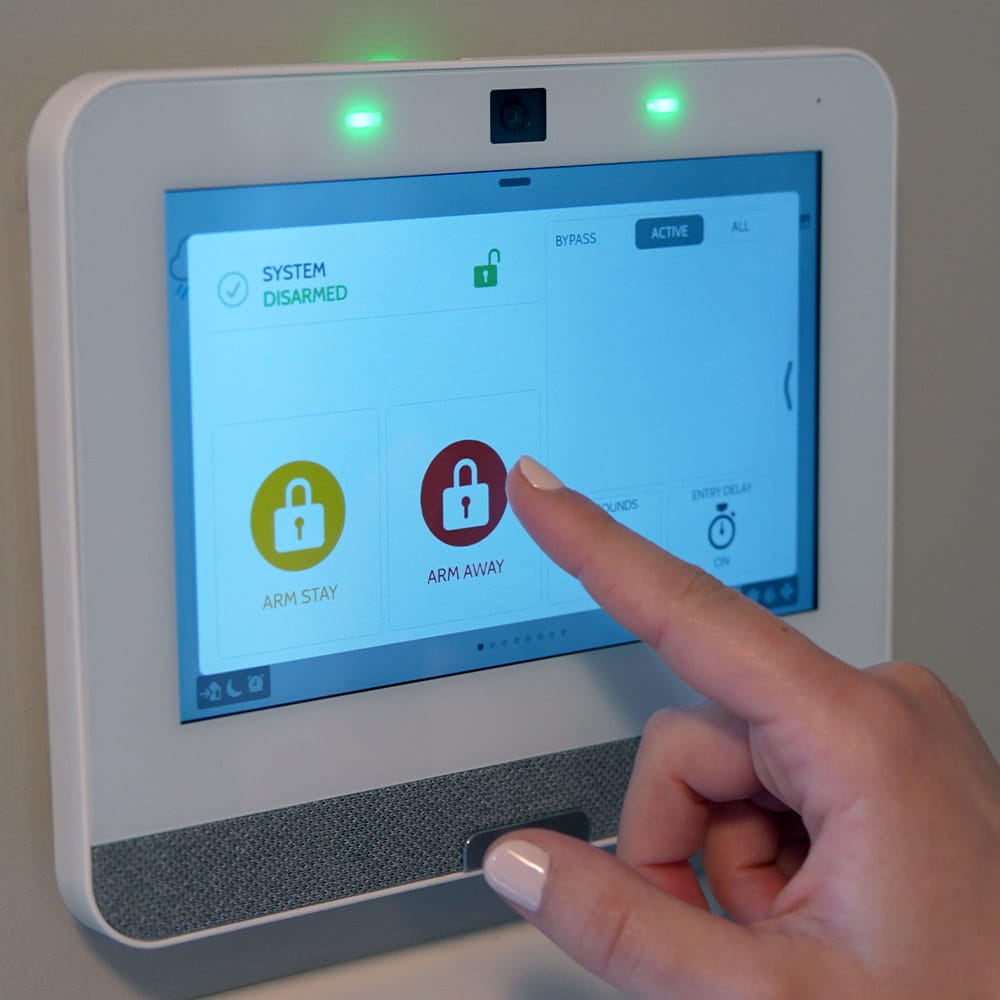

Our security panel offers seamless control, not just monitoring. Its intuitive display lets you manage security and smart devices effortlessly — arm alarms, adjust thermostats, and check locks — all in one place.
Get a Free Quote!
Emergency Response at Your Fingertips

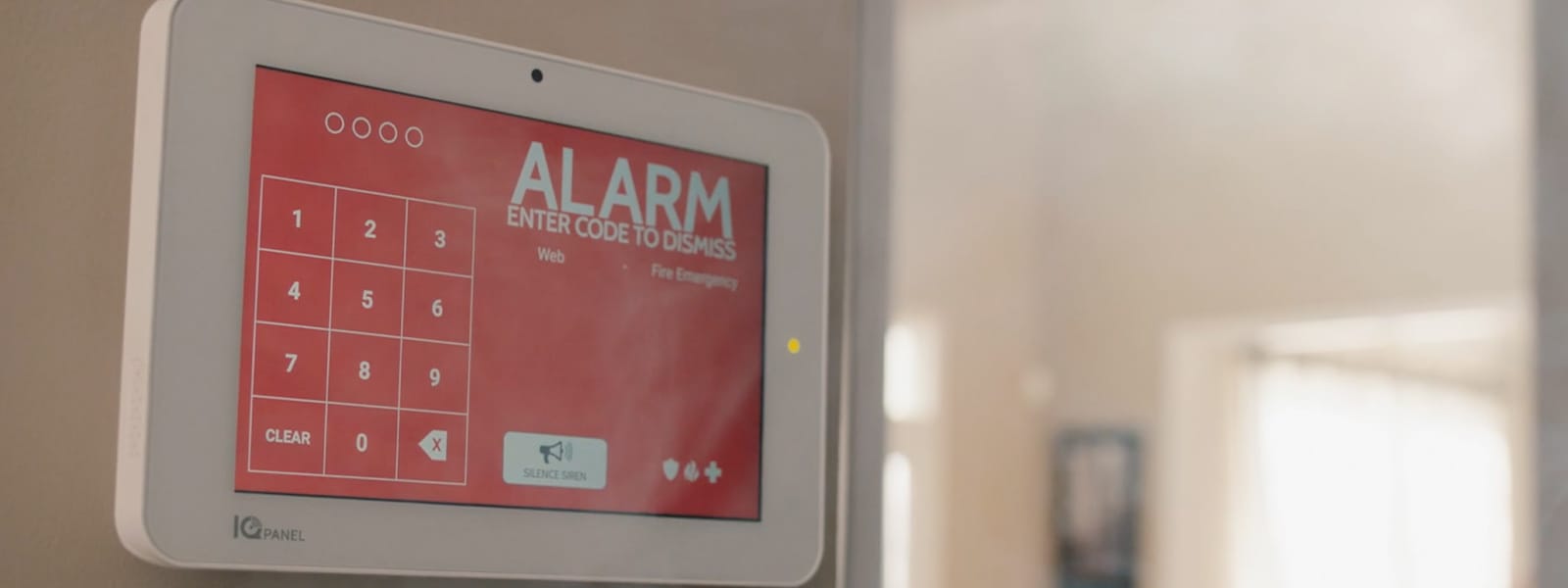

The Guardian IQ4 security panel ensures peace of mind with easy emergency services access. Whether for fire, medical, or police assistance, its intuitive buttons enable a quick response at the touch of a button.
The Power of PowerG Technology
The IQ security panel uses PowerG technology to deliver reliable, long-range communication, enhanced security coverage, and strong encryption for continuous, interference-free protection.
Get a Free Home Security Quote!
Our Devices Work Better Together
Get Smart Home Security
Create a custom home security system based on your home and family’s needs.
Start with a Home Security Package
Browse our home security packages to easily find the right fit for your property.
Specs
Display Size:
7 inch
User Codes:
Up to 242 Role-based
Z-Wave Plus:
Up to 137 Devices 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.)
LCD Resolution:
1280 x 800 pixels Brightness 300 cd/m2 RGB Color 24bit, 16.9 Million Colors
Network:
WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz – including built-in access point capability
PowerG:
Up to 128 Devices, 915 MHz Long Range Secure Encrypted 2-Way Wireless
Touchscreen:
Capacitive glass multi-touch
Cellular:
LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 Non-FirstNet, 26)
Operating System:
Android 9 Security & Home Automation Touch and Swipe Interface
Bluetooth:
Low Energy (BLE) 4.2
Speaker/Siren:
QuadSound 4x front-facing 4W speakers and 85-decibel siren
Tamper:
Dual panel and wall tamper with spring release and Smash and Grab reporting
Buttons:
Single wake/sleep button, all user controls through touch interface
Mount Back Plate:
SmartMount for wall mounting included. SmartMount table stand or SmartMount IQ Base Table Stand with built-in
Processor:
8 core Qualcomm Snapdragon 8 core SOM (System on a Module) with 16GB of NAND Flash
Security RF:
Up to 128 Devices Depending on the model: Either S-Line Encrypted 319.5 MHz, 345 MHz, or 433 MHz
Flash Memory:
Internal Storage 16GB NAND Flash
Camera Front:

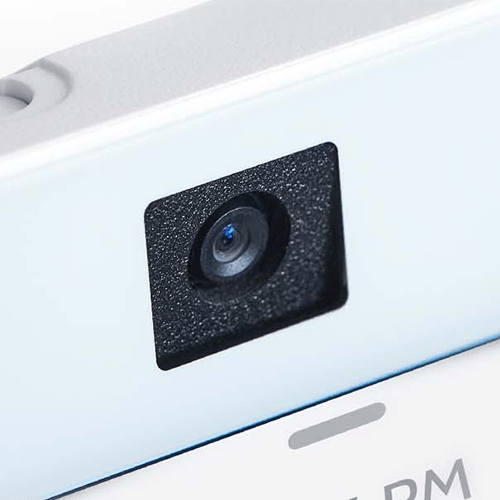

8MP Wide-Angle, 120° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment
Dimensions:
6.1”H x 7.5”W x 1”D (155mm x 191mm x 26mm)
Certifications:
FCC: 2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs) IC IC: 11205A-QSIQPANEL4 UL UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
Battery Type:
18650 Rechargeable Lithium Ion 3000mAh Rated for over 24 hours
LED Indicator:
Triple full color RGB LED
Microphone:
3 MEMS (Micro-Electro-Mechanical System) Microphones with Echo Cancellation
Power Supply:
7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adpater evaluated at 120vAC for UL/cUL
Temperature:
Operational 0°C to 49°C, 32°F to 120.2°F, up to 93% relative humidity, indoor, dry ordinary locations use only Storage -20°C to 50°C, -4°F to 122°F
Frequently Asked Questions
Can I have more than one touch screen with a Guardian IQ4 panel?
Yes! You have the option to pair up to three remotes.
Does the Guardian IQ4 have a battery backup?
Yes! This keeps your system functioning during a power outage.
